Crooked wire costs you time and material. This fine wire straightener tool fixes it before it reaches the bench.
Straightening fine wire at the bench means hammering — which risks marking the surface — or filing and grinding, which removes material you’re not getting back. The Wire Straightener V3 MINI eliminates that step in most cases, delivering wire that goes directly into the next operation.
How it works

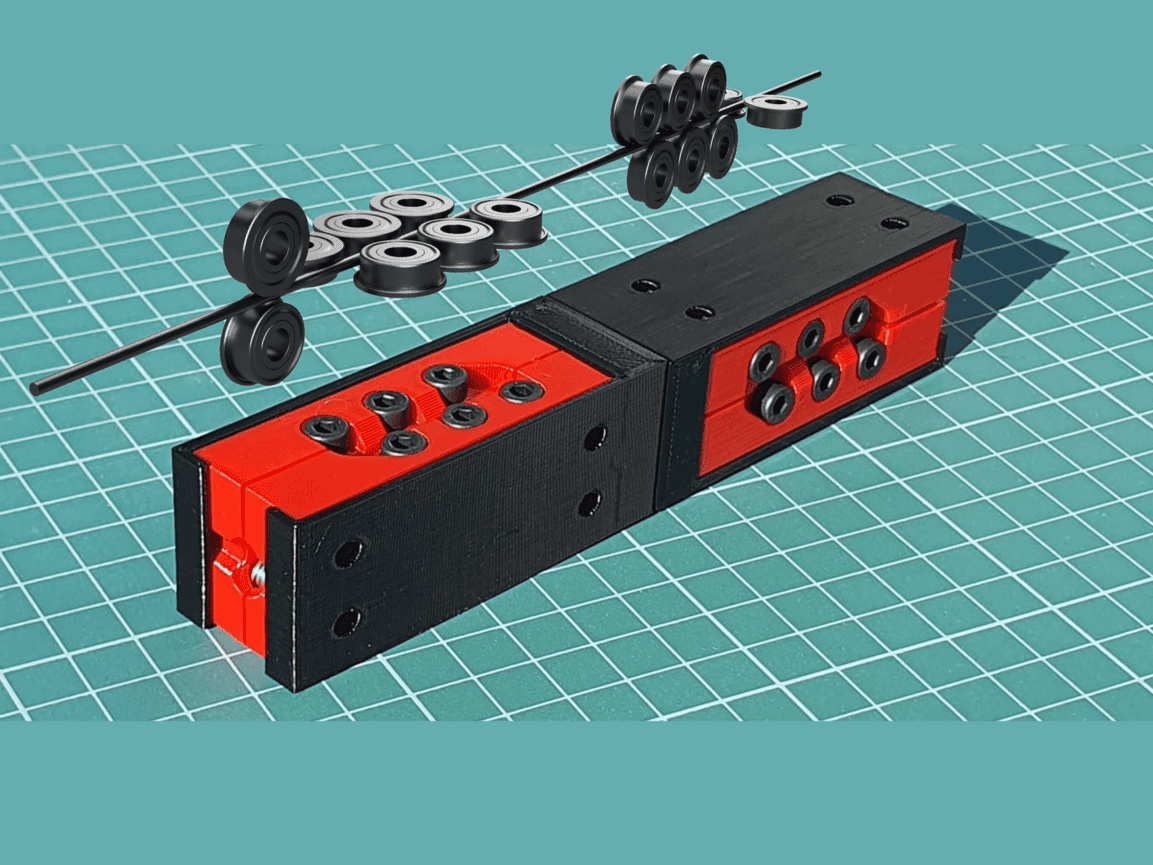

Same principle as the Wire Straightener V3, scaled for fine wire. Two rows of U-groove bearings arranged in perpendicular planes, each row adjustable via Allen key per axis. Wire passes through repeatedly until straight — the number of passes depends on wire diameter, material, and calibration.
Each bearing block also features a pair of entry guide bearings, oriented perpendicular to the main bearing plane. Fine wire tends to wander between block halves; these guide bearings constrain it into the working zone before it reaches the straightening rows.
Bench scale, not industrial scale
Industrial wire straighteners are large, expensive, and built for continuous feed production. This tool brings the same mechanical principle to the workbench — handheld, compact, and sized for the small shop where floor space matters.
Built from 3D-printed PETG with metal hardware and bearings where it counts. Under normal use the construction is solid; flex becomes a factor only with wire well outside the specified range, and affects tool longevity rather than immediate output quality.
Applications
Used wherever straight fine wire stock reduces downstream work:
- Silversmithing and metalsmithing — fine silver, gold, and precious metal wire for earrings, fine chainmaking, prong stock, wire inlay
- Cage and frame fabrication — fine structural wire forms requiring consistent geometry
- Decorative metalwork — fine wire stems, filigree preparation, sculptural elements
- Electronics and electrical work — fine copper wire before termination, LED builds, precision wiring
- Veterinary and technical devices — form-critical fine wire components
- Any context where fine wire must be dimensionally consistent before forming, cutting, or assembly
Specifications
| Parameter | Value |
|---|---|
| Wire diameter range | 0.5–1.5 mm (AWG 25–15) |
| Dimensions | 28 × 28 × 123 mm |
| Weight | ~173 g |
| Bearing configuration | 12 bearings (dual-axis, alternating rows) + 4 entry guide bearings (flanged, miniature bearings) |
| Adjustment | M3 Allen key (included), per axis |
| Materials | PETG body, metal hardware and bearings |
| Suitable metals | Silver, gold, copper, bronze, brass, mild steel, iron |
For thicker wire (1.5–3 mm): Wire Straightener V3
For rectangular and flat wire: Tandem Rectangular Wire Straightener
What’s included
- 1 assembled Wire Straightener V3 MINI
- 1 M3 Allen key
- Instructions leaflet
