Looking for the latest version?
The V5 brings single action height adjustment via a big thumb wheel.
Old version description:

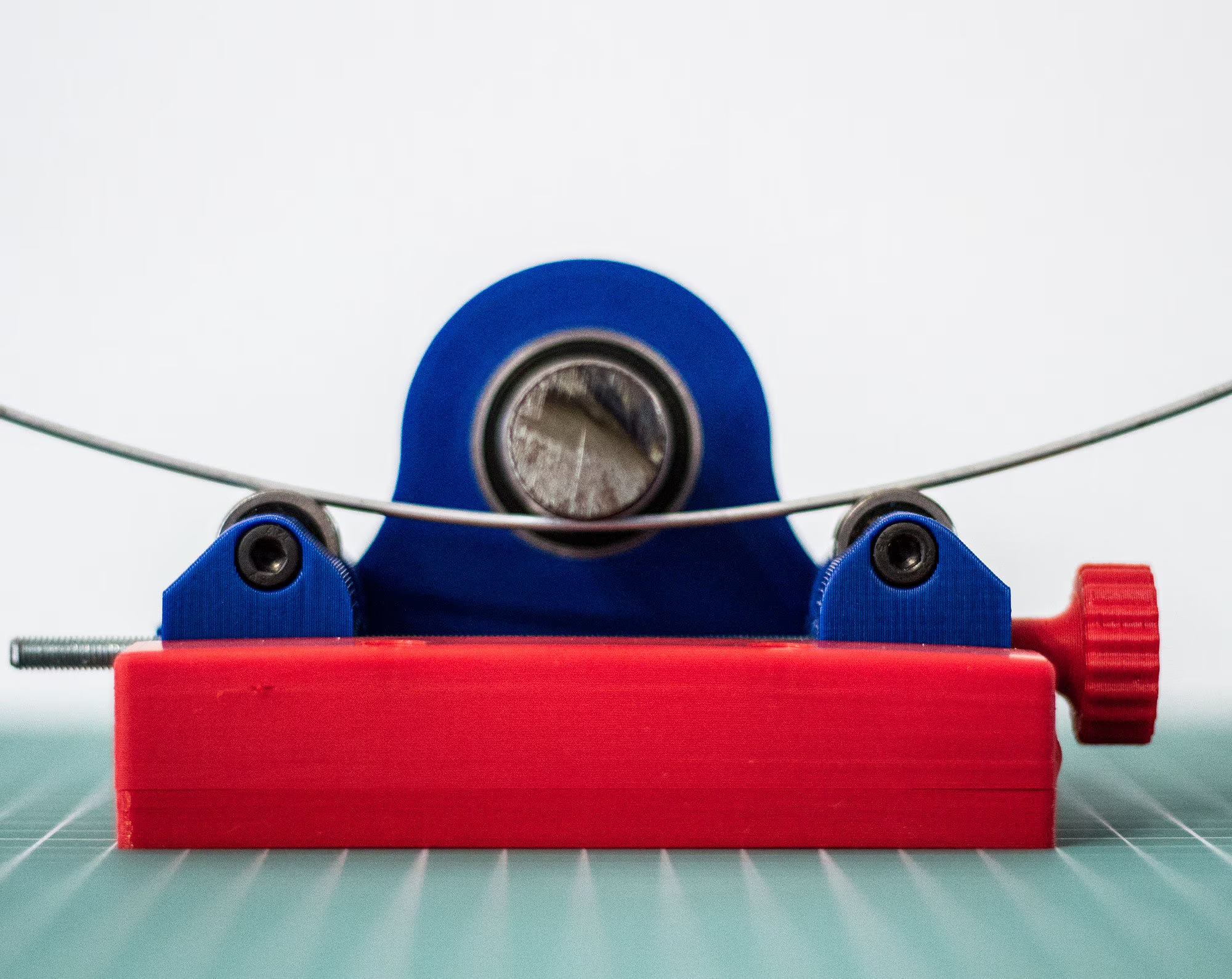

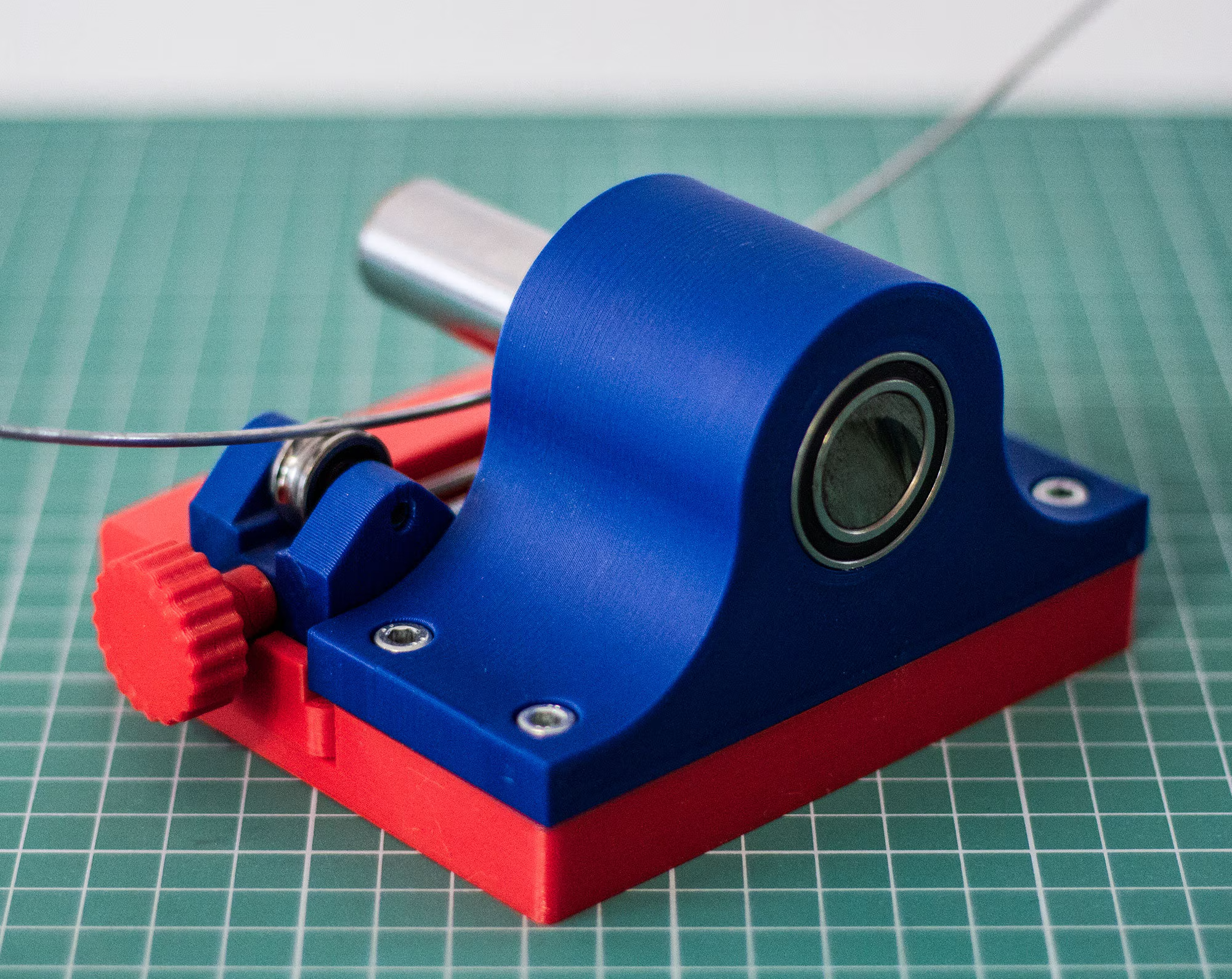

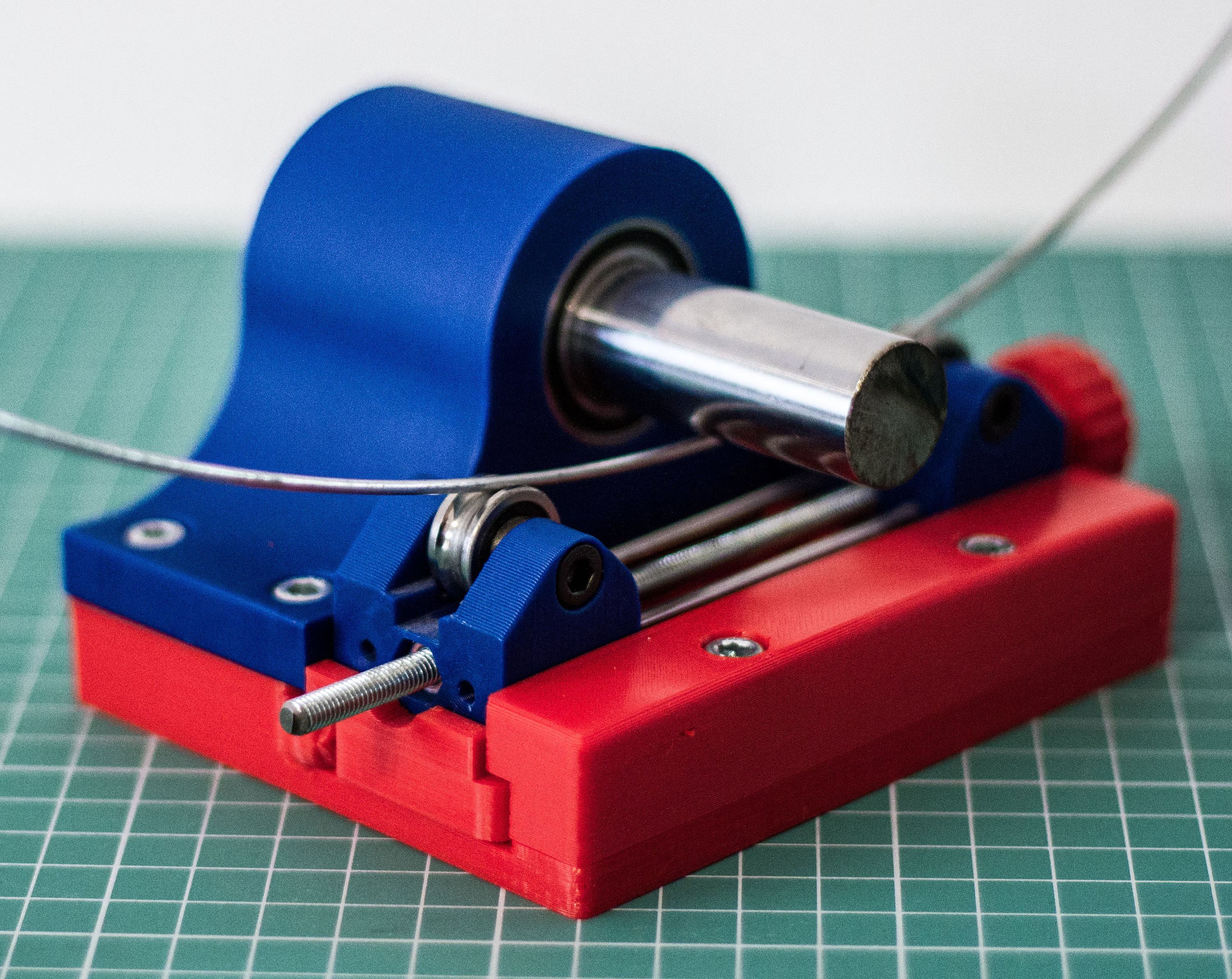

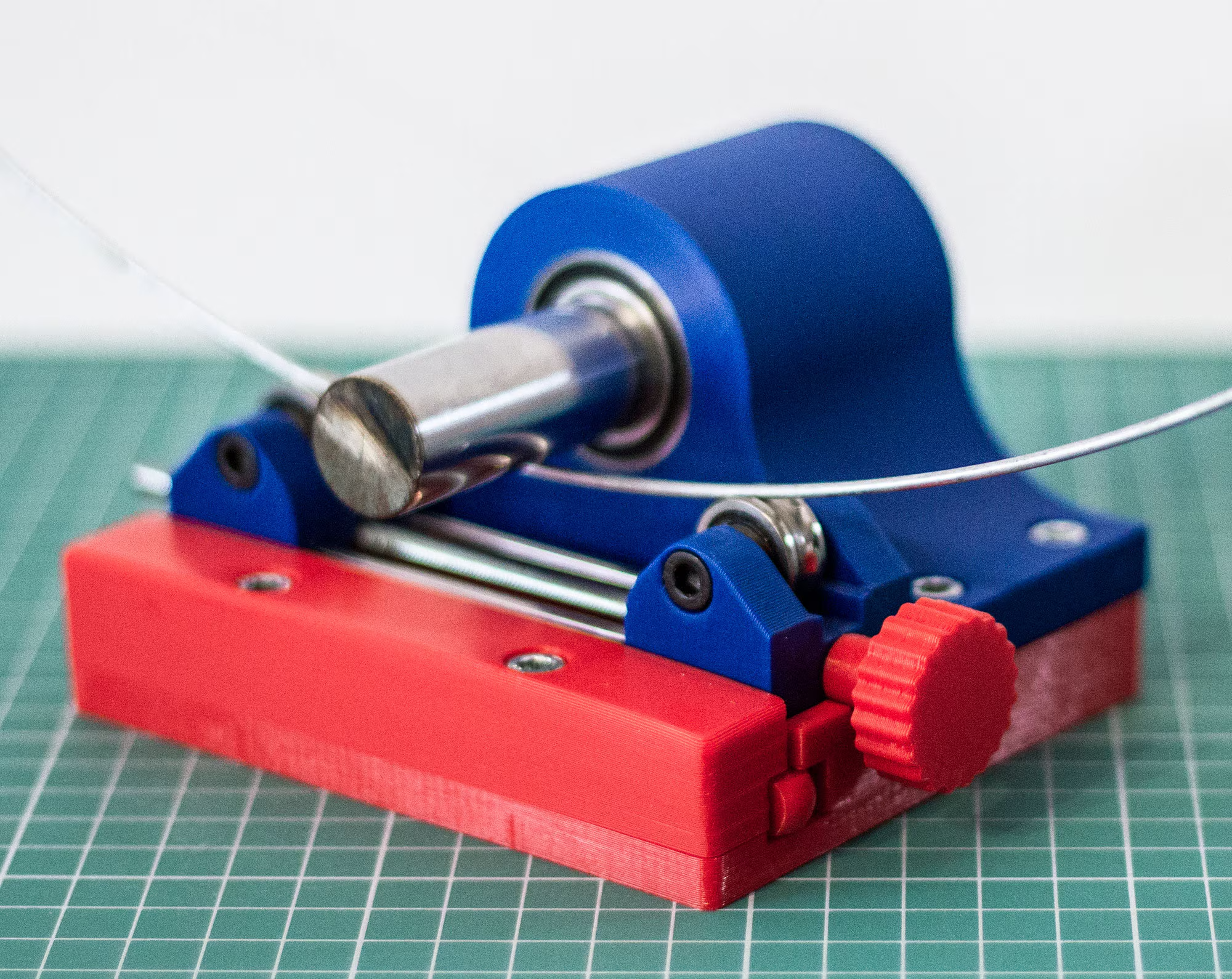

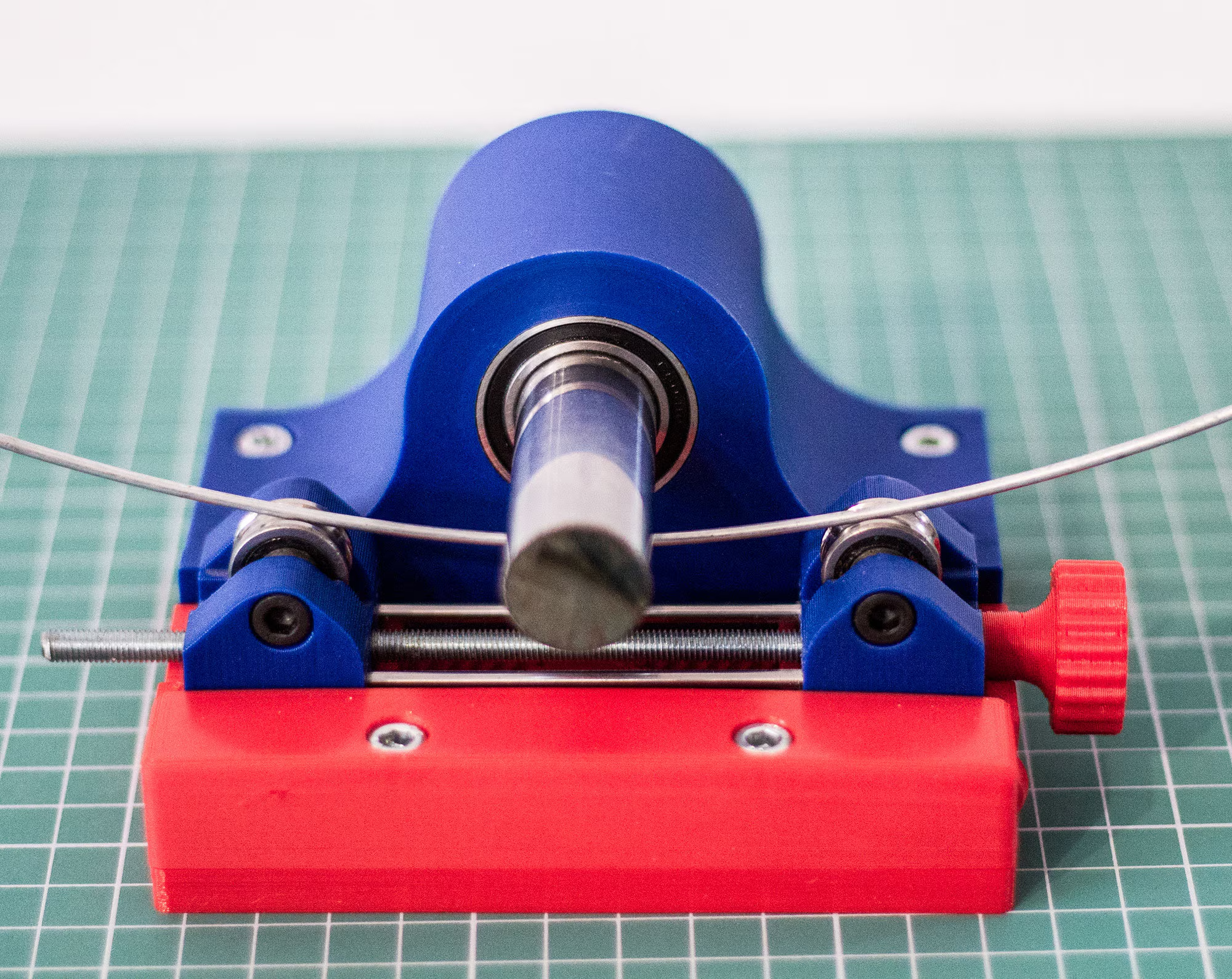

The Wire Roller is useful for creating nicely round stock.
Mostly useful in jewelry and crafts but also in any other application requiring smooth round wire stock.
Good for diameters between 1 ³/₈ inches (35mm) and 18 ¹/₂ inches (470mm)
It features a driving shaft and a pair of self-aligning side rollers ensuring proper simmetry and consistency.
Metal parts:
1 x M5x10 Socket Head Screw
6 x M5x20 Socket Head Screws
2 x M5x25 Socket Head Screws
1 x M5x120 Threaded Rod
1 x 10mmx100mm Smooth Rod
2 x 4mmx110mm Smooth Rods
7 x M5 Lock Nuts
2 x M5 Nuts
2 x 10x32x7 6804 2RS Ball Bearings
2 x SG15 U Groove Bearings
Note: this is the first comercially available version of this tool
More recent versions are the Wire Ring Roller V4 and the Wire Ring Roller V5, both featuring an extra height adjustment.
